From Governed Data to Governed Motion: A Control Plane for Biomedical Robots

By Alexander Chernov. First published on LinkedIn, 2026-08-25. Read the original.

For the last few years the hard problem in enterprise AI has been governing data — making sprawling, heterogeneous data usable, traceable, and trustworthy enough to put a model on top of it. I’ve written before about agentic datasets: data that carries its own descriptor, policy, provenance, and the ability to refuse to be used in ways its policy forbids.

But in a laboratory, the AI’s “output” is not a chart or a summary. It is a robot arm moving a plate of live cells through a sterile workspace. When the consumer of a governed decision is a physical manipulator, the same control-plane ideas stop being about tidiness and become about safety. The frontier moves from governing data to governing motion.

In the physical world, a bad action is not free

In many analytical software systems, a wrong output can be caught, recomputed, or rolled back before it touches the world. Robotic actuation is different: a wrong action moves a real manipulator — possibly into a locked sterile zone, through an occupied fixture, or while an operator’s hand is in the workspace — and once motion begins, the consequences can be immediate and irreversible. “Check the policy, then probably act” is not good enough, because the gap between the check and the act is exactly where accidents live.

So the requirement inverts. It is not enough to log that a rule was violated. The architecture has to make a refused intent structurally incapable of reaching the normal actuation path. Refusal has to be structural, not a runtime afterthought. That is a claim about the software architecture and not about the physical system: a controller bug, a bypass path, a hardware fault, or somebody jogging the arm by hand all sit outside it, which is exactly why the layers below still matter.

A supervisory control plane above the motion stack

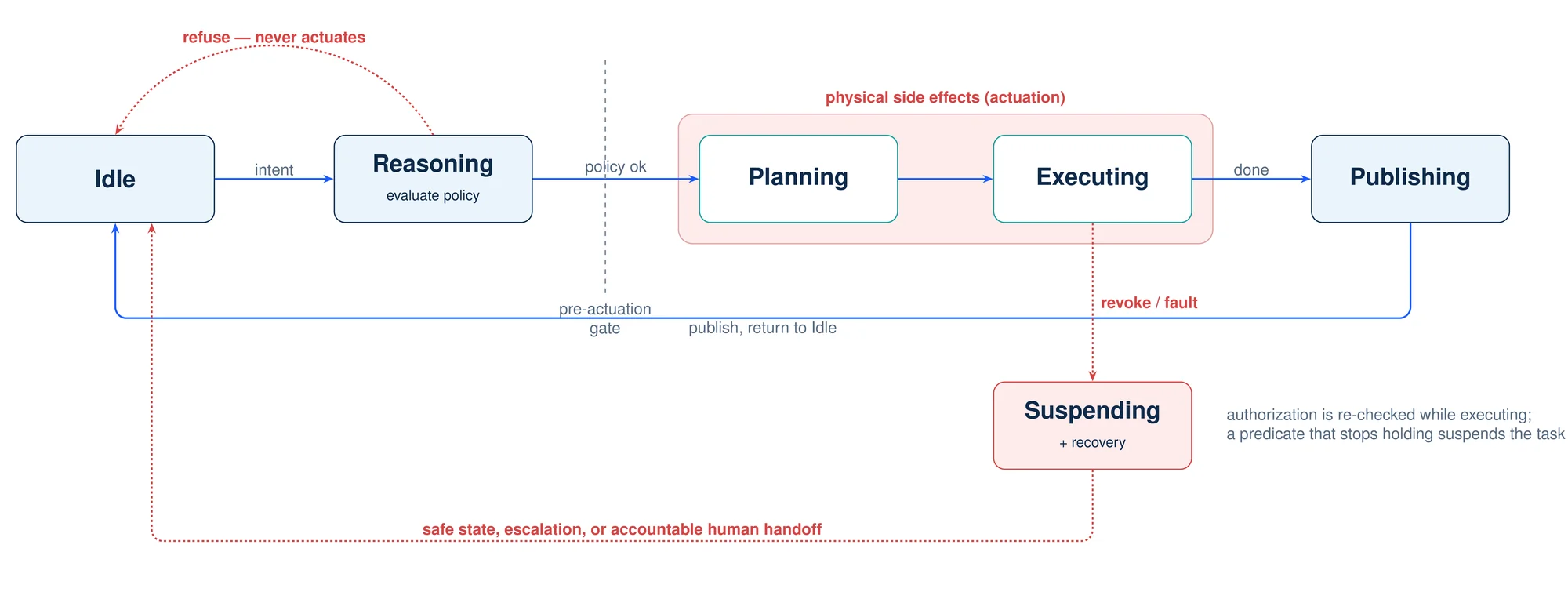

The shape that delivers this is a supervisory layer that sits above the low-level controllers and planners — it does not replace them. Each robot is modeled as a long-lived agent with an explicit lifecycle: it reasons, then plans, then executes, then publishes results, then returns to idle.

The trick is where policy is evaluated. Policies — sterility, human safety, chain of custody, workspace occupancy — are checked in a dedicated reasoning phase, before any planner or driver is touched. A denial returns the agent to idle without ever entering planning or execution. Because the only side-effectful steps live past that gate, “no actuation on a denied intent” becomes a property of the state machine itself, not a promise made by careful code.

This plane does not replace functional safety. Emergency stops, hardware interlocks, safety-rated controllers, collision limits, and workspace monitoring remain the final protective layer, and nothing here weakens them. The supervisory plane operates earlier and answers a different question. Conventional safety asks, “how do we stop an unsafe motion?” The supervisory plane asks, “why was this motion authorized to begin?” Two different predicates: governance decides whether an operation is authorized, functional safety decides whether the resulting motion stays physically safe, and neither one answers the other’s question. Three layers, three jobs: the supervisory plane governs task admission, intent, provenance, and accountability; the safety controller enforces hard real-time physical limits; the motion stack does planning and actuation.

Three properties then follow from the architecture — enforced by construction, provided its state and side-effect boundaries are respected:

Refusal. Unsafe intents are rejected before the robot can move, and each refusal record says which policy was violated and why.
Traceability. Every decision, plan, execution event, and telemetry sample carries the originating intent’s trace identifier, so the full causal chain can be reconstructed after the fact.
Observability. An operator can watch, live, what each agent is doing, why it decided what it decided, and where a task was interrupted — without stopping the running system.

What a governed intent carries

The word intent is doing a lot of work above, so it’s worth making concrete. A governed intent is not a natural-language command or a bare motion request. It is a structured runtime artifact that carries enough context for policy to be evaluated before anything moves: the identity of the requesting workflow, the sample and batch in play, the required sterility and workspace state, the permitted equipment, the operator’s authorization, time constraints, the applicable policy set, and a trace identifier.

intent: transfer_plate
source: incubator_2
destination: reader_1
sample:
  batch: batch_24
  plate: plate_07
required_state:
  sterility: sterile
  workspace: unoccupied
requested_by:
  workflow: assay_run_12
  operator_role: automation_operator
policy_set: biosafety_v3
trace_id: tr-8f31

The policy engine therefore evaluates not just what the robot is asked to do, but under which conditions it is allowed to do it. This is the same move as an agentic dataset’s descriptor — identity, provenance, policy, and chain of custody travelling with the thing being governed — applied to a motion request instead of a data asset.

An intent is also not a trajectory. It states which operation is authorized and under what conditions; how the arm actually gets there — the joint path, the velocity profile, the collision checks — stays with the planner. Keeping those separate is what lets one policy hold across machines that move in completely different ways.

Beyond the gate: authorization can go stale

Admission control is necessary but not always sufficient. Some conditions are stable for the length of a task; others are leases that can expire mid-motion. A workspace becomes occupied, a sterile boundary is opened, an instrument enters a fault state — after the intent was authorized but before it completed. For those conditions the authorization has to stay continuously valid, or be re-checked at defined execution checkpoints. Governed motion needs both pre-actuation admission and runtime revocation: a policy-triggered suspension the moment a safety predicate stops holding.

The underlying shift is short to state and long to build. Authorization is a state, not a one-time decision. An intent has to be authorized when it starts, remain authorized while the predicates it relied on still hold, be revocable the moment they stop, and terminate through a path somebody is accountable for. A gate that answers once and never again is not governing motion; it is stamping requests.

Refusal before actuation is likewise only one failure mode. Once a task is underway, the system needs defined responses for loss of telemetry, a planner timeout, a controller disconnect, a revoked policy, or a partially completed transfer. The safe response might be to stop, hold position, retreat to a known pose, quarantine the sample, or hand off to a human — but it has to be an explicit part of the lifecycle, not exception-handling buried inside a driver. Governing how a task stops matters as much as governing whether it starts.

What the control plane must guarantee

Stated as testable properties rather than aspirations, a governed-motion system should guarantee:

No unauthorized actuation — a denied intent cannot reach a planner, controller, or actuator.
No orphaned motion — every physical action stays bound to an active intent, a policy decision, and a trace.
Revocable authority — if a safety-relevant condition changes, execution can be suspended or terminated in flight.
Deterministic recovery policy — every recognized failure condition maps to a defined recovery or escalation transition. What the architecture can guarantee is the response, not that the plant physically reaches the target state: an actuator that has failed will not retreat to a safe pose because a policy says so.
Accountable human authority — an operator can inspect, interrupt, or assume control without stepping outside the audit trail.

That last one matters. Human oversight belongs inside the control model, not as an external escape hatch. An operator may pause, abort, or take over, but each intervention stays attributable and policy-bound. Emergency action is always available; an administrative override is a different thing, and should demand explicit authority, a rationale, and an audit record. Automation does not remove human responsibility — a good control plane makes it legible. Expressed this way, the guarantees become things you can actually check: as event-log verification rules today, and as invariants or model-checking conditions as the system hardens.

Why this matters for bionic and biomedical systems

Biomedical automation is exactly the setting where this pays off. Sterility, human-safety lockouts, sample integrity, and chain-of-custody are not optional features; they are the reason the system is allowed to run at all. A supervisory layer that makes every action explain itself — and every refusal carry its rationale into an audit trail — is what turns “we automated the lab” into an automation architecture whose decisions can be inspected, traced, and validated. The architecture does not confer approval; it produces the evidence any approval would have to rest on.

It also generalizes across hardware, and that is more than a convenience — it is where the architecture earns its keep. The same intent-level workflow — transfer this plate — runs on a Cartesian liquid handler and on a six-axis articulated arm. The boundary is the useful part: a governed intent names the operation and its conditions, an embodiment-specific planner turns that into a trajectory, and the controller actuates it. Policy attaches at the semantic layer and stops there. The kinematics differ per machine; the governance does not, so it is written once at the intent level instead of being reimplemented, slightly differently, inside every robot’s controller.

The honest next step

To be precise about what is proven and what is designed: I validated the admission invariant in simulation, verifying it directly from the recorded event log — refused intents never reached a planner or driver, and every trace reconstructed end to end. The runtime revocation, recovery, and human-authority guarantees above extend the same supervisory state-machine model, but they are architectural commitments rather than measurements, and none of them has been run on hardware. Simulation proves the design is internally consistent; it does not prove it survives contact with a real motion stack.

If you would rather see the gate than read about it, there is a small public demonstrator: a two-link arm and a discrete lifecycle running in the browser, where you can put an operator in the workspace, lock the sterile zone, and watch intents get refused with the invariant checks updating live (source). It is a demonstrator and not an experiment, and it says so on its own front page: no physics, no hardware, no sensing, and the policies, the workcell and the conditions that trigger a refusal were all written by the same hand. What you are watching is an architecture doing what it was constructed to do — useful for seeing the shape of the idea, and not evidence that a real robot is safer.

That is the work I’m on now: pushing the supervisory layer down onto a real robotics middleware as an admission gate, so that a policy denial is bound to controller activation: the controller that would drive the task is never activated, and an inactive controller claims no command interfaces, so a refused request has no path to the hardware. “No actuation on denial” is then enforced by the middleware rather than by the supervisor politely declining. Worth being exact about what that does and does not mean — it is not a matter of shutting the robot down. Whatever is holding the arm in place stays active; what never happens is the denied task acquiring a claim on the interfaces it would need to move. Runtime revocation and safe-state recovery harden on that same real stack. Transport jitter, scheduling, and real control budgets are where the interesting engineering lives.

The pitch, in one line

We learned to make data that can refuse to be misused. Move the same idea into the physical world and you get motion requests that must prove they are authorized before they become physical actions — a control plane where refusal, traceability, revocation, and recovery are properties of the architecture, not features bolted on after something goes wrong.

Part of this thinking is in a paper accepted at IEEE CBS 2026 (Cyborg and Bionic Systems), Munich, September 2026.

#AgenticAI #Robotics #BionicSystems #LabAutomation #ControlPlane #Safety #ROS2 #Bioprocessing #DataGovernance
